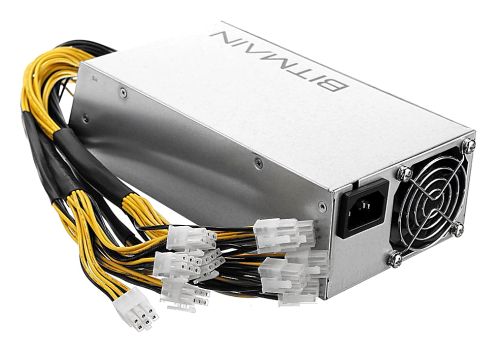

Original PSU (Power Supply) APW3 ++ Bitmain for ASIC Miners, 1600W.

Lots q-ty
Original PSU (Power Supply) APW3 ++ Bitmain for ASIC Miners, 1600W.

Min Lot piece
Items in lot 1

Weight, {{weight}} 2500 g
Vendor Bitmain
Availability on request
Q-ty 50

Description:

Original PSU (Power Supply) APW3 ++ Bitmain for ASIC Miners, 1600W.



Description:

APW3 ++ -12-1600 series AC-DC power supply has the advantages of high conversion efficiency, good output dynamic performance, high power density, etc., with over-temperature, over-current, undervoltage protection, suitable for 1600W and below DC 12V power supply electronic equipment.

Attention! The price for this equipment (pre-order, the date of shipment is specified separately) is given with courier delivery by postal services UPS, DHL, EMS, FEDEX.
If your country requires payment of customs duties and other fees, you pay all fees separately upon receipt of the goods. In case of refusal to receive the goods, the money for the goods is not returned.
You can pay in bitcoins (BTC). Cost specify.
Wholesalers special prices, request a catalog of miners and video cards.
Attention!!! Money for the equipment on the pre-order is not returned, other equipment does not change! The warranty for the equipment is 180 days from the date of shipment.
When making a purchase, you agree to all terms and conditions of delivery.



Features and Specifications:

Packing size: 32.7 * 16.8 * 12.6 cm

Package weight: 2.3 kg.

100-240V wide voltage input.

External remote switch (internal reserved port).

Active power factor correction function, PF> 0.99 (full load).

Highest point efficiency up to 93.5%.

There are short circuit, overload, over temperature protection.
The cooling fan automatically adjusts the speed with temperature.

High power density, only 1.4U height dimensions.

Improve the heat distribution.

The user can replace the output line and trim the output voltage.

Output:

DC voltage (220V input) - 12.15V.

Rated current (220V input) - 133A.

Rated power (220V input) - 1600W.

DC voltage (110V input) - 12.15V.

Rated current (110V input) - 100A.

Rated power (110V input) - 1200W.

Ripple and noise <1%.

Voltage accuracy <2%.

Source adjustment rate <1%.

Load Regulation <1%.

Start up, rise time <2S.

Power down time > 9mS.

Enter:

Voltage range - 100-240V AC.

Start voltage - 95-105V AC.

Frequency Range - 47-63Hz.

Power factor > 0.95 (full load).

Leakage current

Protection:

Input undervoltage - 80-89V AC.

Output short circuit – Have.

Output overcurrent - 134-185A MAX.

Over temperature protection – Have.

Surroundings:

Operating temperature -20-50 ℃ (please refer to the reduction curve).

Working humidity - 20% -90% RH (no condensation).

Structure:

Size – 220 mm * 108 mm * 62 mm.
Weight - 2.05KG.

Cooling method – fan.

Forced air cooling.



Package Including:

Original PSU (Power Supply) APW3 ++ Bitmain for ASIC Miners, 1600W (without power cable for your country!!!).
