BF502, aI binocular fever detecting thermal camera.



Description:

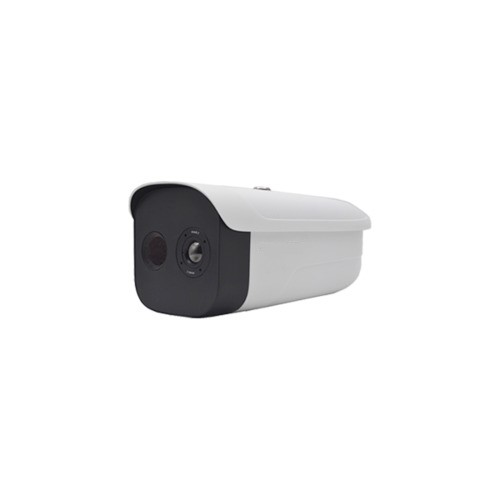

2MP AI Binocular Fever Detecting Thermal Camera.

352 x 288 thermal solution.

Non-contact High-accurate Body Temperature Measurement 35℃-38℃, Accuracy ±0.3℃).

Face Recognition, Can Detecting 20-30pcs Human Faces Simultaneously and Snapshot.

Alarm Output if Abnormal Temperature Detected.

Voice Broadcast.

Fire Alert.

Third-party Platform Docking.

Can Record Identification Information and Temperature Information for Future Search.



Features and Specifications:

Model: MP-BF502AI-TM.

Thermal.

Sensor: VOx Uncooled Thermal Sensor Technology.

Resolution: 352 x 288.

Pixel Interval: 12μm.

Detecting Range: -15℃～550℃.

Detection Accuracy:

Target Temperature:35℃-38℃, accuracy ±0.3℃;

Target Temperature:20℃-33℃ or 38℃-50℃, accuracy ±0.6℃;

Other Temperature: Accuracy±2℃

Focal Length: 2.0mm/3.2mm/4.3mm optional.

Image Mode: Blackhot / Whitehot / Ironrow / Rainbow and etc, multi-color modes selectable.

Optical.

Image Sensor: 1/2.8” Progressive Scan CMOS.

Resolution: 1920x1080P@25fps.

Focal Length: 4mm.

Field of View: Horizontal Angle:84°, Vertical Angle:45°.

Mini. Illumination: 0.005Lux@F1.2 Color mode, 0.001Lux@F1.2(B/W).

WDR: DWDR.

Noise Reduction: 2D DNR;3D DNR.

BLC: Yes.

Dynamic Range: ≥80dB

S/N Ratio: ≥46dB (AGC OFF).

AI.

Face Snapshot.

Built-in DL AI algorithm, support 20-30pcs faces detection simulatenously, face detection, exposure, score, screening, Snapshot and upload, support FTP, HTTP, etc multi-method to upload human face,shoulder, above the waist, whole body,original pic, etc pictures.

Face Recognition: Support,Built-in 50000pcs face datebase.

Function.

Temperature Detection: Support detection of all monitoring area or specified area.

Abnormal Temperature Alarm: High temperature limits, Low temperature limits, the temperature difference of specified zone.

Network Protocol: Support RTSP, RTP, TCP, UDP, UPNP, DHCP, PPPoE, ONVIF, GB/T 28181 protocol etc.

CVBS Output: BNC port.

Network Interface: 1CH 10/10 BaseT Ethernet, RJ45 port.

Alarm Interface: 1CH input/output.

Audio Interface: 1CH input/output.

General.

Working Temperature: -20°C ~55°C.

Working Humidity: 0%-90% RH.

 IP67; TVS 6000V Lightning Protection.
