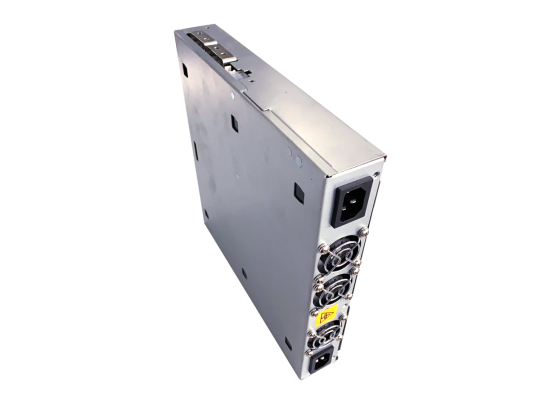

Bitmain APW9+ PSU, 3600W, for S17e, T17e, S17+, T17+.

Bitmain APW9+ PSU, 3600W, for S17e, T17e, S17+, T17+.

Description.

The original power supply from Bitmain for ASIC miners of the following models: S17e, T17e, S17+, T17+.

DC voltage 14.5V-21V.

Rated current (220V input) 170A.

Rated power (220V input) 3600W.

Ripple & Noise <1%.

Regulation <1%.

Load regulation <1%.

Rise time <2S.

Power off protection response time> 10PC.

DC voltage 12.3V.

Rated current (220V input) 12A.

Ripple & Noise <1%.

Voltage accuracy 12.2V-12.4V.

Source Regulation <1%.

Load regulation <1%.

Configure, Rise time <2S.

Power off protection response time> 10PC.

Voltage range 200-240VAC

Frequency range 47-63Hz.

Force factor> 0.99 (full load).

Leakage current

Low voltage input 80-89VAC.

Output short circuit yes.

Output overcurrent 95-130A.

Overheating protection yes.

Working Temperature -20-60 ℃.

Working humidity 20% -90% RH (non-condensing).

Altitude <2000m.

Overall dimensions 204.8SSS * 157 * 42.5mm.

Weight 3.2 kg.

Cooling mode forced air cooling.

Noise 67dBA.

Package Including:

Power supply Bitmain APW9+ PSU, 3600W (power cable not included).
